Three-phase Input
&
Three-phase Output

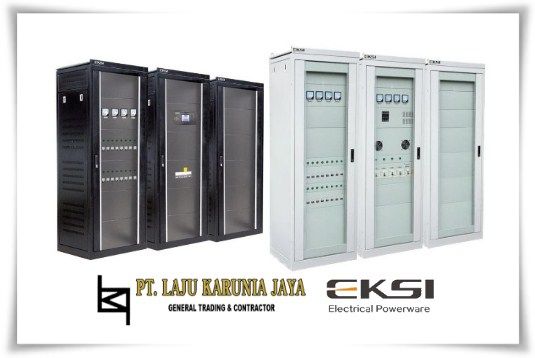

Power-dedicated UPS

The advanced DSP digital control technology is adopted, so as to realize the circuit control, the parameters setting and the operation program management. With the advanced self-test and self-detection function provided, the self-test and failure analysis can be carried out on all the independent circuit connections of the circuit boards. The sine wave voltage and a new perfect operation scheme after digital conversion will meet your exact needs.

Fully Digitalized Technology:

♦The advanced DSP digital control technology is adopted, so as to realize the circuit control, the parameters setting and the operation program management. With the advanced self-test and self-detection function provided, the self-test and failure analysis can be carried out on all the independent circuit connections of the circuit boards. The sine wave voltage and a new perfect operation scheme after digital conversion will meet your exact needs.

Highly Efficient IGBT Inverter Technology:

♦IGBT has a good high-speed switching, high voltage and high current operating characteristics. With the voltage-mode driver adopted, only a small control power is required, which is high in working efficiency (low loss and low heating), miniaturized in drive circuit and high in reliability.

Excellent Load Characteristics:

♦Fully meet the load leaping from 0-100%, able to provide instant full-load requirements, no need to switch over to the bypass and keep the output stably and reliably. Humanized touch screen and large-screen LCD display in both Chinese and English:Flow chart of running state, intelligent icons touch buttons, tabular data, event records display and optional Chinese and English menu operation.

Complete Protection Function:

♦Provided with such multiple system protections and alarms as the over-voltage, low-voltage, over-current, overload, short circuit and waveform distortion.

Convenient Communication:

♦Provided with such communications ports as RS232, RS485 and SNMP cards to realize truly the multi-purpose communications and remote monitoring.

To allow 100% unbalance working:

♦The UPS uses the three-phase independent modulation and the full-bridge inverter technology, which, even if the three-phase load is 100% in unbalance, can still supply the power normally and reliably.

The industrial frequency transformer isolation is adopted between the input and the output and there is, therefore, no EMI suppression.

Adoption of electric power standard cabinet design.

Intuitive mechanical meter indication

Color can be manufactured according to customer requirements.

There is a super-long event logging up to 256 items, which is convenient for the user to make analysis and management of the power supply situation.
